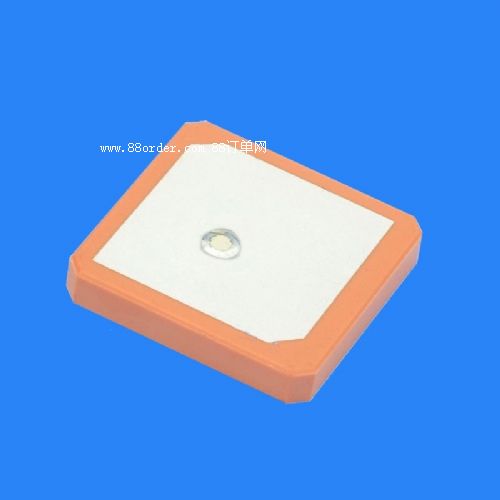

陶瓷天線采用的材質是陶瓷，重量只有200g，它的頻率范圍在902mhz～928mhz之間，而且在介電損耗方面，陶瓷介質比pcb電路板的介電損失要小，所以在低耗電率的的藍牙模塊中非常適合使用。陶瓷天線的效果要強于板載天線，一般有ant 接入腳和地腳，使用也很比較方便。

產品列表尺寸(mm)頻率(mhz)極化最大增益(dbic)*帶寬(mhz)駐波比40.0 x 40.0 x 4.0915圓極化1 (typical)26 (min.)2.5 (max.)36.0 x 36.0 x 6.01227.6

1575.42圓極化4.0 (typical)

5.0 (typical)9.0 (min.)

9.0 (min.)2.0 (max.)36.0 x 36.0 x 6.01227.6圓極化5.0 (typical)9.0 (min.)2.0 (max.)25.0 x 25.0 x 4.01227.6圓極化2.0 (typical)6.0 (min.)2.0 (max.)25.0 x 25.0 x 4.01575.42圓極化5.0 (typical)15.0 (min.)2.0 (max.)25.0 x 25.0 x 4.01575.42

1598-1606圓極化4.0 (typical)

4.2 (typical)13.0 (min.)

15.0 (min.)2.0 (max.)25.0 x 25.0 x 4.01616~1626.5圓極化4.6 (typical)15.0 (min.)2.0 (max.)25.0 x 25.0 x 2.01575.42圓極化4.5 (typical)10.0 (min.)2.0 (max.)
